CAT Lift Trucks

3,000 - 4,000 lb. Capacity Electric Four-Wheel Pneumatic Tire Lift Trucks

Model: EFG 316k-320

Jh4 tooltip Jh4

These 3,000-4,000 lb. capacity lift trucks are equipped with the newest generation of AC technology and feature efficient electric power steering. Industry-leading drive and lift performance levels and the ability to run up to two shifts on a single battery charge in most applications further reduce maintenance requirements and provide a lower total cost of ownership.

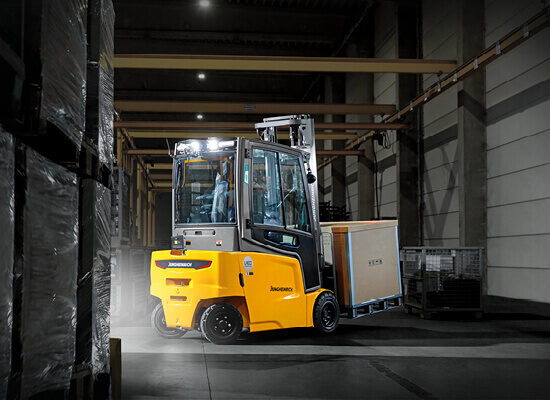

Jh4 550x400prod

Productivity

This forklift is equipped with three performance settings, allowing it to be adapted to match operator preferences.

Experience increased productivity due to the forklift's highly informative, full color interactive display.
Jh4 550x400awar

Awareness

Curve Control on these four-wheel forklift trucks automatically reduces speed while turning corners, helping to ensure control over loads.

Multiple warning and light options increase awareness and visibility in the warehouse.

Orange seat belt helps increase awareness and easy visual verification.

Truck performance software can be adjusted to meet your specific drive and hydraulic performance needs or limits.
Jh4 550x400enef

Energy Efficiency

The energy-efficient design allows the forklift to operate up to two shifts on one battery charge in most applications. This results in increased productivity when operators can work longer without stopping to recharge throughout the work day.

Features regenerative braking, designed to recover lost energy during plugging, braking and coasting. The energy is channeled back into the lift truck's battery, extending operating time and reducing charging time.

Jh4 550x400ergo

Ergonomics

Electronic hydraulic controls offer the highest level of operational ease.

SOLO- or MULTI-PILOT hydraulic controls are available to match operational preferences of operators to maximize their productivity.

The full-suspension seat helps to cushion the operator from vibrations and bumps when traveling over uneven surfaces.

Electric power steering (optional on some models) allows the operator to maneuver the truck with very little effort.
Jh4 550x400tcoo

Total Cost Of Ownership

Major electrical components are sealed such as connectors, controllers and motors, decreasing the chance of external dust and debris from entering critical forklift areas.

Industry-leading service tool allows Jungheinrich technicians to quickly access and check major truck functions for faster service.
Model Basic Capacity (lbs) Maximum Fork Height Length To Fork Face Chassis Width (in) Chassis Height (in) Gross Weight (lbs)
EFG 316k 3,100 256 78.3 41.7 80.4 6,601
EFG 316 3,100 256 82.6 41.7 80.4 6,537
EFG 318k 3,490 256 78.3 44.1 80.4 6,964
EFG 318 3,490 256 82.6 44.1 80.4 6,900
EFG 320 3,880 256 82.6 44.1 80.4 7,253
